Автономний/гібридний сонячний інвертор серії VHS потужністю 5 кВт
- Висока стійкість до ударних навантажень.
- 4 вхідні потужності від фотоелектричного модульного, акумуляторного, мережевого та дизельного генератора.
- Інтелектуальне управління енергією в режимі реального часу.
- Перемикання рівня ДБЖ ≤10 мс.
- Барвистий сенсорний РК-екран.
- струм зарядки/розрядки 120А.
- Ступінь захисту IP65.
- 8 одиниць паралельного підключення.
Каталог
Зверніться до служби підтримки

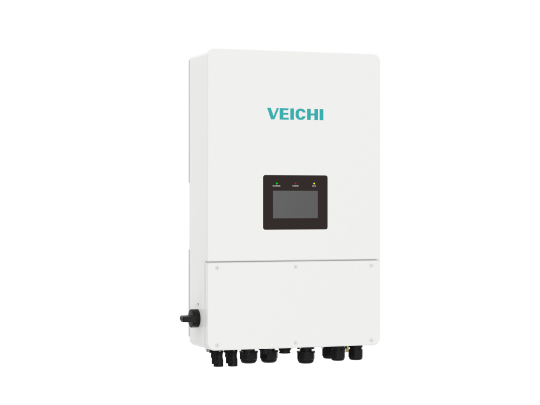

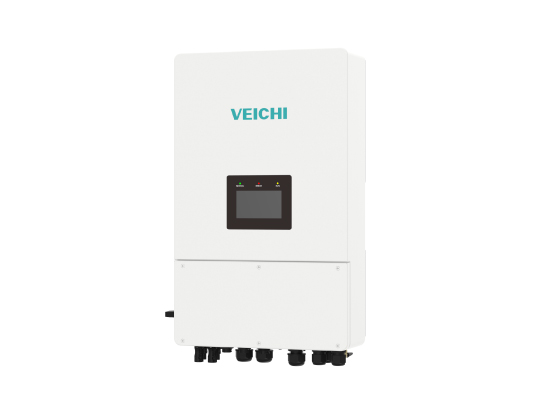

Електронна поштаVHS Series 5kW Off Grid/Hybrid Solar Inverter Overview
VHS series 5kW off grid/hybrid solar inverter is a robust and versatile technology designed to optimize solar energy utilization for off-grid and hybrid systems. Its ability to handle various power sources and deliver a reliable energy supply solution. VHS series 5kW off grid/hybrid solar inverter is an innovative solution for those seeking to maximize the efficiency and reliability of their solar power systems. Its comprehensive feature set makes it an ideal choice for a wide range of applications, from residential to commercial and industrial settings.
VHS Series 5kW Off Grid/Hybrid Solar Inverter Advantages
1. High Impact Load Resistance:
The inverter is built to withstand and manage high-impact loads, ensuring the system remains stable and operational even during sudden power fluctuations.
2. Four Power Inputs:
It offers flexibility with four different power input options, including PV modules, battery storage, grid connection, and a diesel generator. This diversity ensures a consistent power supply regardless of the energy source availability.
3. Real-time Smart Energy Management:
Advanced algorithms enable real-time monitoring and management of energy flow, optimizing the use of solar power and reducing reliance on non-renewable sources.
4. UPS-Level Switching ≤10ms:
The inverter provides seamless and rapid switching within 10 milliseconds, equivalent to UPS standards, ensuring that critical loads experience no downtime.
5. Colorful Touch LCD Screen:
A user-friendly interface with a colorful touch LCD screen allows for easy monitoring and control of the inverter's functions and system status.
6. Max Charging/Discharging Current of 120A:
With a maximum charging and discharging current capacity of 120A, the inverter is suitable for systems that require high current applications.
7. IP65 Protection Level:
The inverter is rated IP65, protecting against dust ingress and water jets, making it suitable for outdoor installations and harsh environments.
8. Parallel Connection up to 8 Units:
It supports parallel connection of up to 8 units, allowing for scalability and increased power output to meet the demands of larger systems.
Applications for VHS Series 5kW Off Grid/Hybrid Solar Inverter
Applications: VHS Series 5kW off grid/hybrid solar inverter is widely used in the energy storage system of residential and power-deficient areas.
Технічні характеристики
| Тип батареї | Свинцево-кислотний або літій-іонний |
|---|---|
| Діапазон напруги акумулятора (В) | 48(40~60) |
| Максимальний струм заряджання/розряджання (А) | 120 |
| Потужність заряджання/розряджання (Вт) | 5000/5300 |
| Вхідна потужність постійного струму (Вт) | 6500 |
|---|---|
| Max. PV Input Voltage (V) | 600 |
| MPPT Voltage Range (V) | 60~550 |
| Rated Input Voltage (V) | 360 |
| Max. Input Current Per MPPT(A) | 16 |
| Max. Short Circuit Current Per MPPT (A) | 23 |
| MPPT Tracker No. | 2 |
| Rated AC Active Power Output (W) | 5000 |
|---|---|
| Rated Output Voltage (V) | 220/230 |
| Output AC Frequency (Hz) | 50/60 |
| Rated AC Current Output (A) | 22.7/21.7 |
| Power Factor | ~1 (0.8 leading to 0.8 lagging) |
| Total Harmonic Current Distortion (THDi) | <2% |
| Automatic Switching Time (ms) | ≤10 |
| Total Harmonic Voltage Distortion(THDu)(@ linear load) | <2% |
| Max. Efficiency | 97.60% |
|---|---|
| Euro Efficiency | 96.50% |
| MPPT Efficiency | 99.90% |
| Insulation Resistor Detection,Residual Current Monitoring Unit,DC Reverse Polarity Protection, Anti-islanding Protection,Output Over Current Protection,Output Shorted Protection, Surge Protection, Over Voltage Protection |
Integrated |
|---|
| Operating Temperature Range (℃) | -25~+60，>45℃ Derating |
|---|---|
| Max. Operating Altitude (M) | 3000 (Derating above 2000m) |
| Cooling | Natural convection |
| HMI | LCD,WLAN+ APP |
| Communication with BMS | CAN/RS485 |
| Electric Meter Communication Mode | RS485 |
| Monitoring Mode | Wifi/BlueTooth+LAN/4G |
| Weight (Kg) | 22 |
| Dimension (Width*Height*Thickness)( mm) | 370×595×222 |
| Night Power Consumption (W) | <10 |
| Protection Degree | IP65 |
| Installation Method | Wall-mounted |
| Parallel Function | Max.8 units |
